Summary

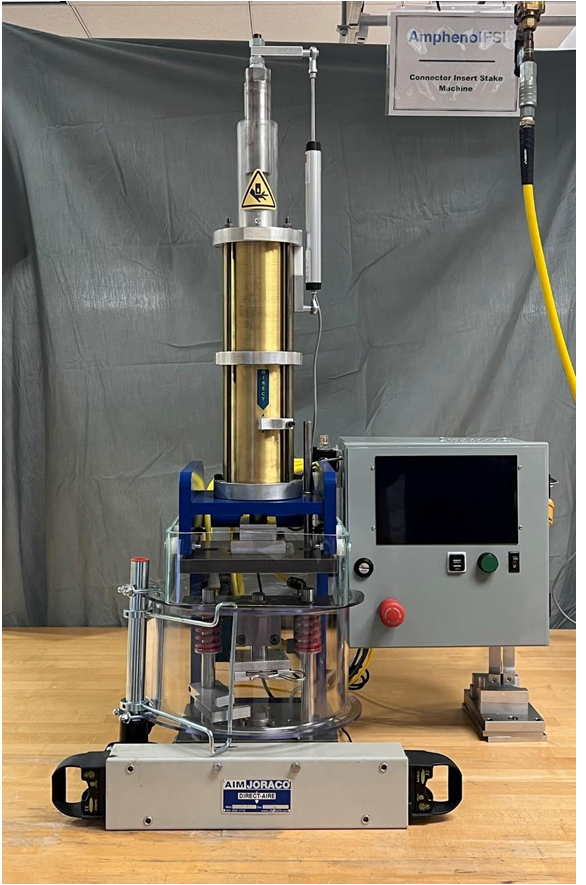

Led system integration project to design, test, and manufacture a high precision staking machine. Used GD&T principles to ensure high tolerance levels. Retrofitted pneumatic press to have closed-loop electro-pneumatic regulation with programmable force profiles. Developed systems control software and human machine interface (HMI). Implemented RS232 Modbus communication between Raspberry PI and PLC.

AFSI Staking Machine Final Report PDF

Click Here to download a pdf attachment of the fabrication and design report for the AFSI Fiber Optic Staking Machine.

AFSI Staking Machine User Manual PDF

Click Here to download a pdf attachment of the staking machine user manual.
